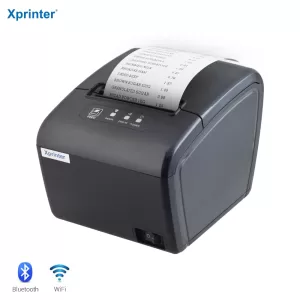

Product Name: Xprinter XP-S200M/ XP-S260M
Brand name: Xprinter
Place of Origin: China
Model Number: XP-S200m/ xp-s260m/
Material: abs
Certification: ccc, ce, fcc, rohs, kc, saa, bis
OEM Availability: yes
Place of Origin: China
Model Number: XP-S200m/ xp-s260m/
Material: abs
Certification: ccc, ce, fcc, rohs, kc, saa, bis
OEM Availability: yes
Xprinter XP-S200M/ XP-S260M is a high-tech thermal printer designed for vertical printing, wall mounting, as well as custom-made, not only conventional POS printing but also kitchen printing to prevent oil, water, and dust ingress.
Product Details
| Model | XP-S200M | XP-S260M | XP-S300M |
| Printing | |||
| Printing method | Direct thermal | ||
| Paper width | 57.5±0.5mm / 79.5±0.5mm | ||
| Print width | 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm | ||
| Column capacity | 576 dots/line(adjustable by command) | ||
| Printing speed | 200 mm/s Max. | 260 mm/s Max. | 300 mm/s Max. |
| Interface | USB(Optional :WIFI+Bluetooth)
Lan/ USB+Serial USB+Lan(Optional :WIFI+Bluetooth) |
USB+Serial+Lan
USB+Serial+Lan+Bluetooth USB+Serial+Lan+WIFI |
USB+Serial+Lan |
| Line spacing | 3.75mm (Adjustable by commands) | ||
| Column number | 80mm paper: Font A – 42 columns or 48 columns/Font B – 56 columns or 64 columns/ Chinese,traditional Chinese – 21 columns or 24 columns |
||
| Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） | ||
| Cutter | |||
| Auto cutter | Partial | ||
| Barcode Character | |||
| Extension character sheet |
PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） | ||
| Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | ||
| 2D Barcode | QR CODE / PDF417 (Unavailable in interfaces: USB+Serial / USB+WiFi / USB+Bluetooth) | ||
| Input buffer | 128 Kbytes | 128 Kbytes | 2048 Kbytes |
| NV Flash | 256 Kbytes | 256 Kbytes | 256 Kbytes |
| Power | |||
| Power adaptor | Input：AC 110V/240V、50~60Hz
Output: DC 24V/2.5A |
||
| Printer Input | DC 24V/2.5A | ||
| Cash drawer output | DC 24V/1A | ||
| Physical characteristics | |||
| Weight | 0.97 Kg | ||
| Dimensions | 180×140×134.1mm (D×W×H) | ||
| Environmental Requirements | |||
| Work environment | Temperature (0～45℃) humidity:10～80% RH | ||
| Storage environment | Temperature -10～60℃ humidity:10～90% RH | ||
| Reliability | |||
| Cutter life | 1.5 million cuts | ||
| Printer head life | 150 KM | ||
| Software | |||
| Emulation | ESC/POS | ||
| Driver | Windows/JPOS/ OPOS/Linux/Android/Mac | ||
| Utility | Windows & Linux test Utility | ||
| SDK | iOS/Android/Windows | ||
