Commercial Ice Machine

CBFI commercial icee machineProduct Name: Commercial Ice Machine

Brand Name: CBFI
Place of Origin: China
Refrigerant: R22/R404a
Certification: CE
Service: OEM & ODM
Warranty: 1 Year

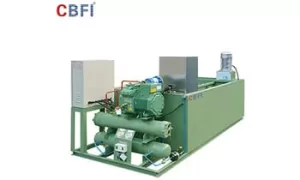

Commercial ice machine BBI10 is CBFI company’s new generation coil brine block ice machine. It is very energy efficient and easy to use. After a short training, anyone can use it to make ice. And the installation is so simple, just connect water and electricity. We provide wheels for moving or transporting CBFI ice block machine.

Product Features

● The commercial icee machine uses a coil evaporator, so there is no need to worry about the ice breaking down in the evaporator.

● For coil evaporative block ice machines, we use high-power water agitators instead of ordinary water pumps. Energy saving and consumption reduction, the power consumption of ice making dropped from 110kW·h/ton of block ice to 74kW·h.

● It faster the brine flowing so that shorten the ice frozen time and improve the refrigeration effect of the whole machine.

● Daily production: 1 ton per day to 100 tons per day. And if the capacity is more than 20 tons per day, it cannot ship the whole machine in container. Then we do the local installation and construction in your place.

● The ice making tank is made of 800mm thick polyurethane insulation material. It has good viscosity and heat insulation effect.

● CBFI commercial icee machine adopts agitator, which has better heat exchange effect, and no need to worry about the high maintenance cost of the water pump.

Product Parameter

Item No. Production Rated Power Cooling Fan Power Machine Dimension Weight of Machine

Ton/24H

KW

KW

L*W*H

KG

MB10

1.0

3.92

0.37

2820*1410*965    900

MB20

2.0

7.11

0.55

1700*750*1500

2220*1440*1065

1100

MB30

3.0

9.68

0.75

1800*750*1500

3000*1380*1065

1300

MB40

5.0

12.56

0.75

2000*800*1600

3110*1470*1075

1500

MB50

8.0

14.6

1.5

2000*800*1600

4560*1380*1150

1700

MB60

6.0

18.84

1.5

2000*800*1600

5340*1380*1150

1900

MB80

8.0

21.30

1.5

2000*1000*1800

7720*1950*1150

2300

MB100

10.0

26.60

1.5

2500*1200*2000

6360*3710*1565

2700

MB150

15.0

48.30

2.2

3100*1200*2000

9280*2260*1560

3700

MB200

20.0

63

3.75

3500*1500*2200

11560*4200*1565

4700

MB250

25.0

68.7

3.75

3500*1500*2200

12080*2260*1560

5700

MB300

30.0

76.4

5.5

3500*1500*2200

11560*5430*1600

6700

MB400

40.0

126

7.5

2*3500*1300*2200

11560*7080*1600

8700

MB500

50.0

137.4

7.5

2*3500*1300*2200

14170*7080*1600

10700

MB1000

100.0

274.8

15

4*3500*1300*2200

12000*13500*1450

21400

Product Application

1. Ice factory of the ports and docks
2. Fresh for aquatic products
3. Cooling
4. Distance transportation
5. Fishery
6. Food preservation
7. Special areas of cooling
8. Ice sculpture

Product FAQ

1. Who are we?
Our company is Guangzhou Icesource Co., Ltd. CBFI is an ice machine manufacturer in China integrating R&D, design, manufacturing, sales and after-sales service. We are also a pioneer in the large-scale fluorine refrigeration and ice-making equipment industry, and a service provider of large-scale ice-making plants and cold storage engineering solutions.The main products are various ice machines (direct cooling block ice machine, block ice machine, tube ice machine, block ice machine, flake ice machine, plate ice machine, pure ice machine, automatic ice machine). CBFI ice machine is widely used in food, fishery, retail, fruits and vegetables.

2. Do you test ice machines in your factory?
Yes, CBFI ice machine has been carefully inspected for 3 to 5 days after leaving the factory. We retest ice machines when we install them at our customers’ plants.

3. Can the ice machine be loaded into the container?
CBFI ice machine manufacturers have container type block ice machine. Our export ice machine is designed according to container standard, easy to load. 10 tons of 25kg ice can be loaded in a 40ft container. For household ice machines with a daily output of more than 12 tons, we design according to the truck standard, which can be easily driven into your factory.
